Pulse Vacuum Autoclave

Elevating-type Pulse Vacuum Vertical Autoclave

Elevating-type Pulse Vacuum Vertical Autoclave

Brand:NANBEI
Model:Elevating-type Pulse Vacuum Vertical Autoclave
Application:Laboratory,School,Hospital,Factory,Home...
Product Details

LS Series Elevating-type Pulse Vacuum Vertical Autoclave




Introduction about Elevating-type Pulse Vacuum Vertical Autoclave:

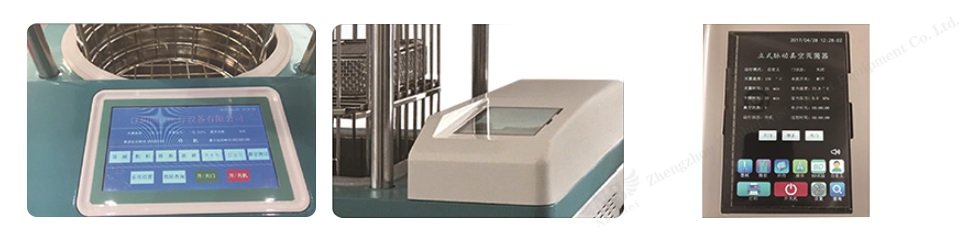

7" capacitive touch screen, fully automatically controlled, easy to operate on.Elevating type door, which is more convenient to place and fetch the objects from the autoclave.





Characteristics about Elevating-type Pulse Vacuum Vertical Autoclave:

1• 7" capacitive touch screen, fully automatically controlled, easy to operate on.

2• Elevating type door, which is more convenient to place and fetch the objects from the autoclave.

3• The whole procedure from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.

4• Pulse vacuum, the limit is -0.080Mpa, which ensure the sterilizing more completely.

5• Separated steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing objects from been oxidized.

6• There are several programs loaded in the autoclaves for different requirement of different objects.

7• With PT-TT testing port, easy to run the testing.

8• Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20um, which ensure the air is sterile, prevent the contamination.

9• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.



Technical Data about Elevating-type Pulse Vacuum Vertical Autoclave:

Model

NB-60SV

NB-80SV

NB-100SV

NB-120SV

Technical

Chamber volume

60L

φ396×490mm

80L

φ396×650mm

100L

504×404×502mm

120L

504×404×590mm

The height after rising

1310

1590

1475

1565

Working pressure

0.22Mpa

Working temperature

134℃

Heat average

≤±1℃

Timer range

0-99min

Temperature adjust range

105-134℃

Power

Steam generator3KW

Dry blanket:2.4KW/AC220V 50HZ

Steam generator3.6KW

Dry blanket:2.4KW/AC220V 50HZ

Overall dimension(mm

686×556×913

686×556×1035

840×600×970

840×600×1060

Transport dimensionmm

789×656×1013

786×656×1135

940×610×1000

940×610×1075

G.W/N.W

210Kg/180Kg

230Kg/200Kg

300Kg/270Kg

325Kg/295Kg
