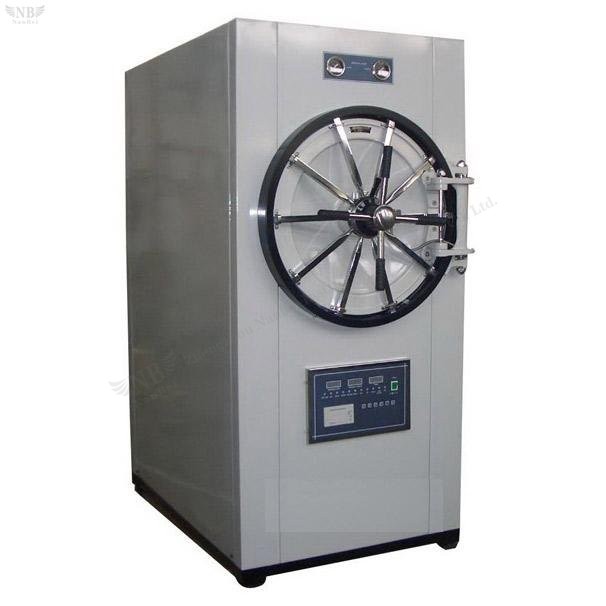

200L Horizontal Pressure Steam Sterilizer

Brand:NANBEI
Model:200L Horizontal Pressure Steam Sterilizer
Application:Laboratory,School,Hospital,Factory,Home...

Send Inquiry

Product Details

Horizontal cylindrical pressure steam sterilizer(Microcomputer control)

Characteristics about 200L Horizontal Pressure Steam Sterilizer:

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.

Technical data about 200L Horizontal Pressure Steam Sterilizer:

Technical data	WS-150YDB	WS-200YDB	WS-280YDB
Sterilizing chamber volume	150L φ440×1000mm	200L φ515×1000mm	280L φ600×1000mm
working pressure	0.22 MPa
working temperature	134℃
Adjustment of temperature	40℃ - 134℃
Time of sterilization	0-99 min
Time of drying	0-99 min
Heat average	≤± 2℃
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz
Dimension(mm)	1400×650×1600	1400×750×1700	1520×910×1900
Transport dimension (mm)	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/340 KG	436/350 KG	570/462 KG
